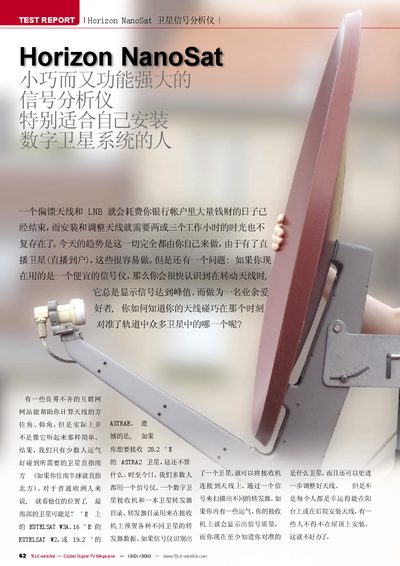

Horizon NanoSat satellite signal analyser is a small and powerful signal analyser which is especially suitable for people who install their own digital satellite systems.
The Horizon NanoSat is a compact handheld satellite signal analyzer designed for fast and easy dish alignment. It weighs only 230 g, features a 128 × 64 pixel LCD and connects between the LNB and the receiver via a coaxial cable.
The manual provides step‑by‑step guidance on powering the device, adjusting antenna elevation and azimuth, and using the pre‑loaded satellite data. Technical data, accessories and optional USB connectivity are also described. This manual is written in Chinese.
| Frequency range | 950–2150 MHz |
|---|---|
| Dimensions | 140 × 90 × 40 mm |
| Weight | 0.23 kg |
| Display | 128 × 64 pixel LCD |
It comes pre‑loaded with four satellites: 19.2 E ASTRA, 13 E HOTBIRD, 28.2 E ASTRA2 A and ASTRA2 D.
Set the elevation scale 5–10° lower than the antenna’s elevation before moving east‑west.
