The Oscar 2 ABP System is a non-invasive oscillometric blood pressure monitor that measures the systolic and diastolic blood pressure of adult patients. It is intended for use as an adjunct in diagnosis and treatment.

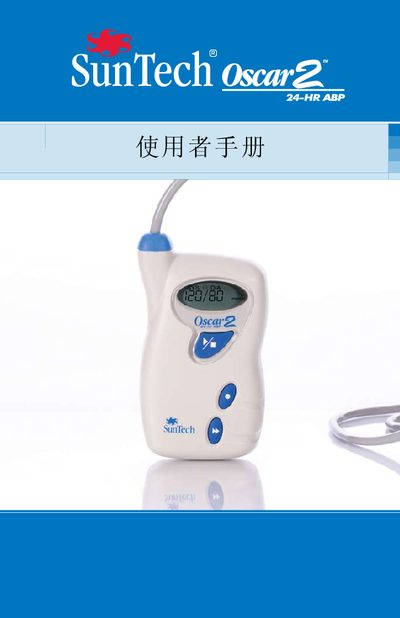

The Oscar2 24‑HR ABP is an ambulatory blood‑pressure monitoring system designed for 24‑hour patient use. The manual outlines device components, connection options (USB RS‑232), and step‑by‑step instructions for measurement and data download.
Key technical details include a blood‑pressure range of 25‑260 mmHg (up to 280 mmHg), heart‑rate detection from 40‑200 bpm, operating temperature from 10 °C to 50 °C, storage temperature from –20 °C to 70 °C, and dimensions of 120 × 70 × 32 mm weighing 284 g. The device complies with multiple IEC/EN safety standards and includes contact information for SunTech Medical.
| Blood pressure measurement range | 25‑260 mmHg (up to 280 mmHg) |
|---|---|
| Heart‑rate measurement range | 40‑200 bpm |
| Operating temperature | 10 °C to 50 °C (50 °F‑122 °F) |
| Storage temperature | -20 °C to 70 °C |
| Relative humidity | 20‑95 % RH |
| Dimensions (L × W × H) | 120 × 70 × 32 mm |
| Connectivity | USB (RS‑232) |
| Regulatory standards | EN 60601‑1, EN 60601‑2‑30, EN 60601‑1‑2, EN 1060‑1, EN 1060‑3 |
The Oscar2 measures blood pressure from 25 mmHg up to 260 mmHg, with an extended range to 280 mmHg.
The device operates between 10 °C (50 °F) and 50 °C (122 °F).
Data can be transferred via the built‑in USB port that uses an RS‑232 interface.
