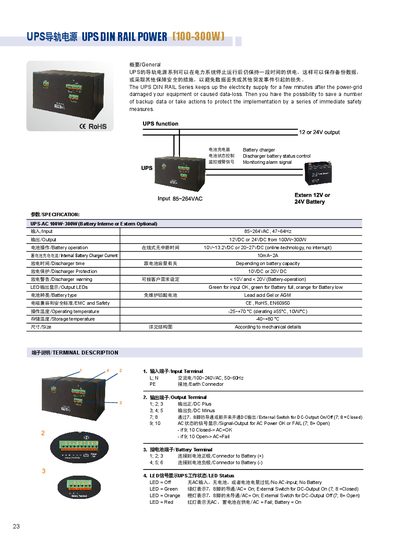

The UPS DIN RAIL Series keeps up the electricity supply for a few minutes after the power-grid damaged your equipment or caused data-loss. Then you have the possibility to save a number of backup data or take actions to protect the implementation by a series of immediate safety measures.
The UPS DIN RAIL POWER series supplies electricity for a few minutes after a power loss, allowing data backup and safety actions. It supports 100‑300 W output, online‑technology with no interruption, and includes LED status indicators for input and battery conditions.
The document describes input and output terminals, battery charger current (10 mA~2 A), supported battery types (lead‑acid Gel or AGM), operating temperature (-25 °C to +70 °C), storage temperature (-40 °C to +80 °C), and compliance with CE, RoHS, and EN60950 standards. Mechanical details and wiring diagrams are also provided. This manual is written in Chinese.
| Input voltage | 100~240VAC, 50~60Hz |
|---|---|
| Output power range | 100W~300W |
| Output voltage | 12VDC or 24VDC |
| Battery charger current | 10 mA~2 A |
| Battery type | Lead‑acid Gel or AGM |
| Certifications | CE, RoHS, EN60950 |
It accepts an input voltage of 100~240VAC at 50~60Hz.
Off means no AC input or low battery; Orange indicates a fault on pins 7‑8; Green shows AC is on and pins 7‑8 are closed; Red signals no AC and battery is supplying power.
