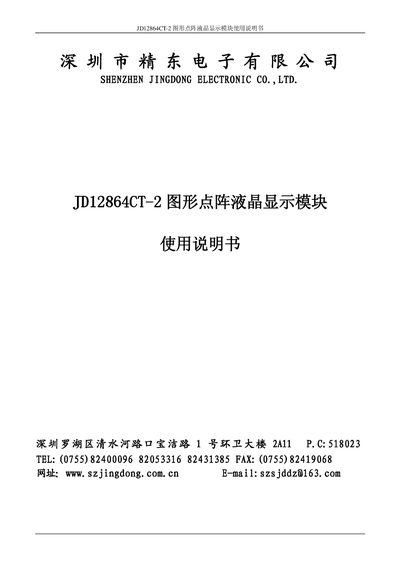

The JD12864CT-2 is a 128×64 dot‑matrix graphic LCD module that interfaces directly with 8‑bit microprocessors. It uses a T6963C controller, provides both character and graphic display modes, and includes an internal CGROM with 128 characters.
The manual details mechanical dimensions, electrical parameters, pin definitions, timing diagrams, command set, and example 8051 assembly programs for initializing and controlling the display. It also explains how to configure text and graphic areas, cursor behavior, and automatic read/write modes. This manual is written in Chinese.
| Dot Matrix | 128 × 64 |
|---|---|
| Dot Size | 0.39 mm × 0.55 mm |
| Dot Pitch | 0.44 mm × 0.60 mm |
| Operating Temperature | -20 °C to 70 °C |
| Storage Temperature | -30 °C to 80 °C |
The display has a 128 × 64 dot matrix.
It can operate from –20 °C up to 70 °C.
