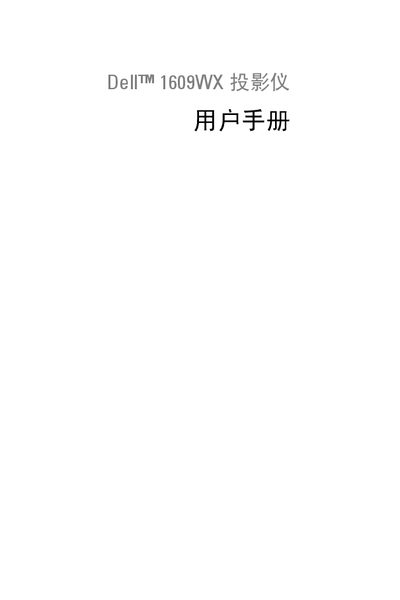

Dell 1609WX projector user manual, introduces the features and characteristics of the projector, including connecting to a computer, connecting to a DVD player, using a projector, etc.
This manual covers everything you need to get the Dell 1609WX projector up and running, from unpacking and connecting cables to adjusting image settings and using the remote control. Safety warnings and environmental requirements are also included to ensure reliable operation.
Detailed sections guide you through connecting computers via VGA, DVI‑D, HDMI, and other inputs, adjusting focus, zoom, and screen size, as well as replacing the lamp and troubleshooting common issues. Technical specifications and contact information are provided at the end of the document. This manual is written in Chinese.
| Brightness | 2500 ANSI lumens (max) |
|---|---|
| Contrast Ratio | Typical 1900:1 (full on/off) |
| Resolution | 1280 × 800 (WXGA) |
| Lamp Power | 200 W (replaceable) |
| Lamp Life | 3000 h (up to 4000 h in ECO mode) |
| Power Consumption | 256 W (full), 216 W (ECO) |
| Weight | 4.95 lb (2.25 kg) |
| Throw Distance | 3.3 – 39.4 ft (1.0 – 12 m) |
| Screen Size | 27.3 – 359.4 in diagonal |
| Audio | 1 speaker, 8 W RMS |
| Noise Level | 34 dB(A) full, 31 dB(A) ECO |
Use a VGA‑to‑VGA cable to connect the computer’s VGA output to the projector’s VGA‑A input connector.
The lamp is rated for up to 3000 hours of use, or up to 4000 hours when operating in ECO mode.
The projector should be used in an environment between 5 °C and 35 °C (41 °F–95 °F).
