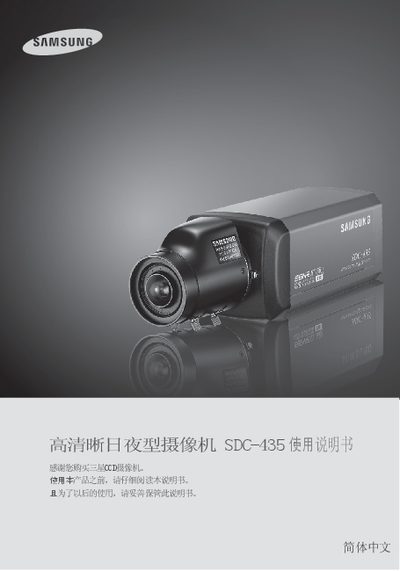

This is a Samsung CCD camera product user manual, which introduces the characteristics of the camera, including 600TV lines super high resolution, high sensitivity, electronic day and night conversion, dynamic detection, multilingual menu, digital stabilization, Video / DC lens, Coaxial communication, etc.
This manual covers the setup, operation, and maintenance of the Samsung SDC-435 camcorder. It includes power‑supply options, pin configurations, and safety guidelines.
Technical details such as sensor type, dimensions, weight, and video output specifications are listed, along with troubleshooting tips and contact information for support.
| Power supply (PD version) | DC 12 V |
|---|---|
| Power supply (P version) | AC 24 V / DC 12 V |
| DC input current | 500 mA |
| AC input current | 300 mA |
| Image sensor | 1/3 inch diagonal 6 mm Super HAD CCD |
The camcorder can be powered by DC 12 V (PD version) or by AC 24 V or DC 12 V (P version).
It uses a 1/3‑inch diagonal 6 mm Super HAD CCD sensor.
