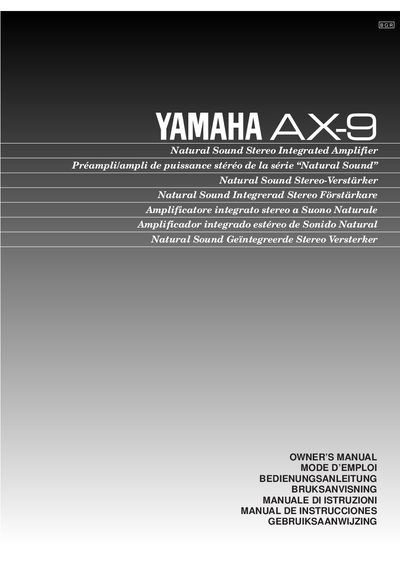

This manual introduces the Yamaha AX-9 stereo integrated amplifier, describing its key features such as 50 W + 50 W RMS output, PURE DIRECT mode, and remote‑control capability. It includes safety instructions, installation guidelines, and proper handling of the unit.
Detailed sections cover the remote control transmitter, speaker and component connections, front‑panel controls, and full technical specifications, helping users configure the amplifier for optimal performance.
| RMS Output Power per Channel | 50 W + 50 W (8 Ω), 0.03 % THD, 20‑20 kHz |
|---|---|
| Dimensions (W × H × D) | 280 mm × 118.5 mm × 388.5 mm |
Only AA, R6, UM‑3 batteries may be used for replacement.
The remote works up to approximately 6 m (19.7 feet).
