HP ProLiant DL380 G7 server is a server with high integration and excellent performance, with higher flexibility, enterprise-level uptime, advanced server management functions, the latest processor series and 2U computing density.
The ProLiant DL380 G7 server combines 2U density, HP Insight Control, and HP Sea of Sensors technology for high performance and energy efficiency. It supports the latest Intel® Xeon® 5600/5500 processors, up to 192 GB DDR3 memory, and offers flexible storage options up to 12 TB.

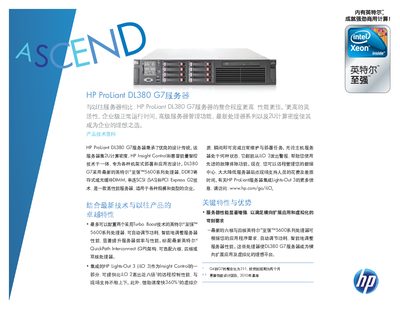

Integrated HP Lights‑Out 3 (iLO 3) provides remote management, while the server can be equipped with 460 W, 750 W, 1200 W AC or 48 V DC power supplies. The system includes redundant power options, advanced ECC memory protection, and a range of networking and expansion slots for versatile deployment. This manual is written in Chinese.
| Processor quantity | 2 |
|---|---|
| Processor cores | Six, four or two cores |
| Processor speed | 3.33 GHz |
| Supported processors | Intel Xeon 5600 or 5500 series |
| Maximum memory | 192 GB DDR3 |
| Memory slots | 18 DIMM slots |
| Maximum internal storage | 12 TB |
| Drive bays | Up to 16 × 2.5" or 6 × 3.5" hot‑swap drives |
| Network interfaces | Two NC382i dual‑port Gigabit NICs |
| Power supply options | 460 W, 750 W, 1200 W AC or 48 V DC |
The server includes HP Lights‑Out 3 (iLO 3) as part of HP Insight Control for remote management.
It can be configured with up to 192 GB of DDR3 memory across 18 DIMM slots.
The server supports Intel Xeon 5600 or 5500 series processors.
Customers can choose 460 W, 750 W, 1200 W AC power supplies or a 48 V DC supply, with optional redundancy.
