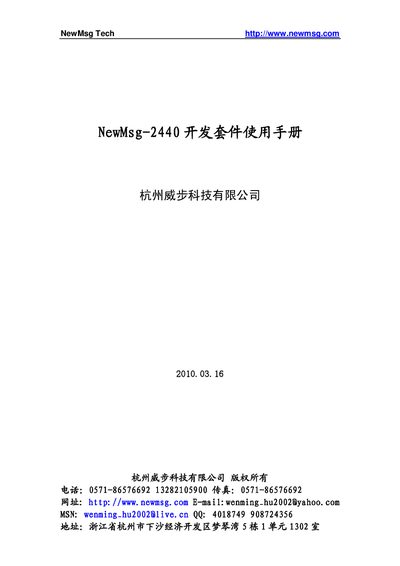

This manual introduces the hardware resources and software resources of the NewMsg-2440 development kit, as well as the development board usage method.
The NewMsg-2440 development kit is an ARM‑based embedded platform featuring a Samsung S3C2440 processor, 64 MB SDRAM, and multiple I/O interfaces. The manual provides detailed hardware resource descriptions, software environment setup for Linux and U‑Boot, and step‑by‑step usage instructions.
It also includes information on board dimensions, power requirements, peripheral connections (USB, Ethernet, UART, ADC, etc.), and a troubleshooting section with hardware and software FAQs. Contact details for technical support are listed at the end of the document. This manual is written in Chinese.
| Core board dimensions | 58 mm × 78 mm |
|---|---|
| Memory | 64 MB SDRAM |
| Flash storage | 2 MB NOR Flash, 64 / 128 MB NAND Flash |
| USB interfaces | 2 × USB 1.1 host, 1 × USB 1.1 device |
There are two USB 1.1 host ports and one USB 1.1 device port.
The core board is powered by 1.25 V, while the board circuitry uses 3.3 V.
