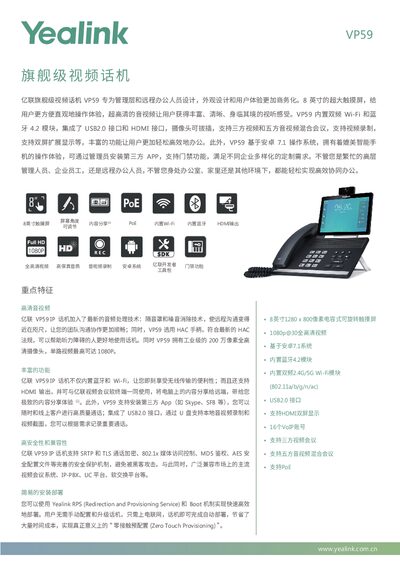

The manual details features, specifications, installation and configuration of the Yealink VP59 video phone.
The Yealink VP59 is a flagship‑level video phone designed for executives and remote workers. It offers an 8‑inch capacitive touchscreen, Android 7.1 OS, dual‑band Wi‑Fi, Bluetooth 4.2, HDMI output and a detachable 2‑MP camera for high‑definition video calls.
The document provides technical parameters, audio/video codec support, interface options, power options (including PoE), security features, and step‑by‑step guidance for provisioning and deployment using Yealink RPS and zero‑touch provisioning. This manual is written in Chinese.
| Screen size | 8‑inch |
|---|---|
| Screen resolution | 1280 × 800 pixels |
| Camera resolution | 2 MP (200万像素) |
| Video resolution | 1080p @ 30 fps |
| Video codecs | H.264 High Profile, H.264, H.263, VP8 |
| Audio codecs | Opus, G.722, G.722.1, G.722.1C, PCMA, PCMU, G.729A/B, G.726, G.723.1, iLBC |
| Bluetooth | Bluetooth 4.2 |
| Power options | PoE (IEEE 802.3af) Class 3, optional 12 V / 1 A adapter |
| Power consumption | 6.24 W‑9 W (PSU), 7 W‑10.2 W (PoE) |
| USB ports | 1 × USB2.0, 1 × USB3.0 |
| HDMI port | 1 × HDMI |
| VoIP accounts | 16 |
The VP59 supports up to 16 VoIP accounts.
It runs Android 7.1.
Yes, it supports PoE according to IEEE 802.3af Class 3.
The phone supports H.264 High Profile, H.264, H.263 and VP8.
