The Yealink VC200 is an Android‑based video‑conference terminal for small meeting rooms, featuring a 4K camera, 6‑beamforming microphones, Wi‑Fi, Bluetooth…
The VC200 combines a 4K ultra‑HD camera with a 103° wide field of view, 4× digital zoom and an electronic PTZ, plus six beamforming microphones for clear audio capture up to 5 m. It runs on Android 7.1, supports H.265/HEVC video codec, and offers dual‑band Wi‑Fi, Bluetooth and PoE power for a compact all‑in‑one design that can be mounted directly on a TV.

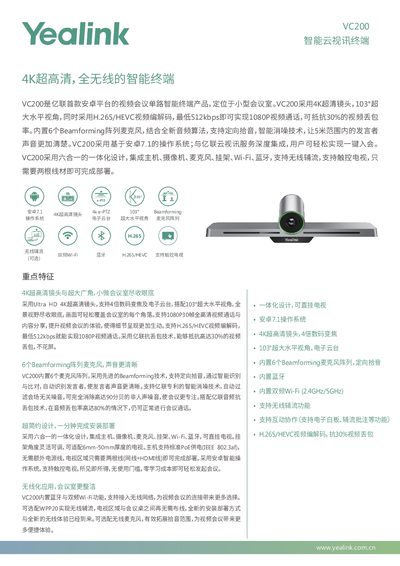

Installation is simplified: the device can be powered via standard PoE (IEEE 802.3af) and requires only an HDMI cable and an Ethernet cable (or Wi‑Fi) to connect. Optional accessories include a wireless screen‑sharing dongle (WPP20) and a wireless microphone. The manual details network configuration, security settings, and usage features such as call control, content sharing, and recording. This manual is written in Chinese.
| Camera resolution | 4K Ultra HD |
|---|---|
| Camera field of view | 103° |
| Digital zoom | 4× |
| Microphone arrays | 6 beamforming microphones |
| Wi‑Fi | Dual‑band 2.4 GHz / 5 GHz |
| Power supply | PoE (IEEE 802.3af) optional external adapter |
| Storage | 16 GB internal (≈8 GB user‑available) |
| Power consumption | Standby <6.5 W, normal 7 W, max 8 W |
| Dimensions (W×D×H) | 300 mm × 70 mm × 86.6 mm |
| Operating temperature | 0 °C – 40 °C |
| Operating humidity | 10 % – 95 % |
The VC200 includes six built‑in beamforming microphone arrays for directional pickup up to 5 m.
The device can be powered via standard PoE (IEEE 802.3af) and does not need a separate power cable.
It supports H.265/HEVC and can achieve 1080P video calls with as low as 512 kbps.
It can be connected via a PoE Ethernet cable or wirelessly using dual‑band Wi‑Fi (2.4 GHz/5 GHz).
