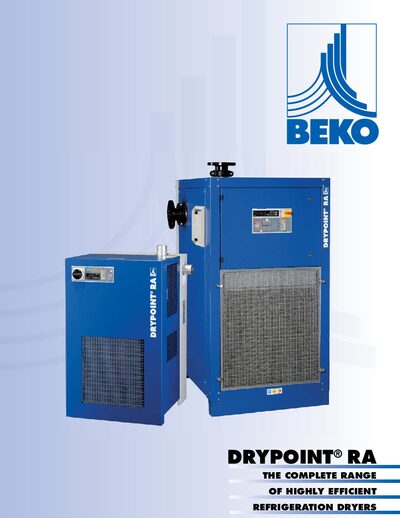

The Beko DRYPOINT® RA series includes high‑efficiency refrigeration dryers with detailed specifications, features, and warranty information.
The DRYPOINT® RA product family from Beko offers a complete range of highly efficient refrigeration dryers for compressed‑air applications. Models cover standard, high‑temperature, high‑pressure and large‑capacity versions, each designed for low energy consumption and reliable operation.
Key features include optimized flow channels, aluminum or stainless‑steel heat exchangers, the patented VarioFlow hot‑gas by‑pass valve for a stable dew point, and the integrated BEKOMAT® condensate drain. Technical data tables provide flow‑rate ranges, pressure drops, voltage options and dimensional information for each model.
| Standard outlet pressure dew point | 41 °F |
|---|---|
| Maximum inlet air temperature (RA series) | 130 °F |
| Maximum inlet pressure (RA series) | 232 psig (10‑50 scfm) / 200 psig (75‑485 scfm) |
| Standard outlet pressure dew point (RA HT / RS HP) | 37 °F |
The standard outlet pressure dew point is 41 °F.
The patented VarioFlow hot‑gas by‑pass valve provides a stable dew point without freeze‑ups, independent of power or electronic control.
