This document is the instruction manual for the DD 109 electromagnetic valve. It mainly introduces the composition and working principle, installation method, use method, maintenance and maintenance methods of the electromagnetic valve

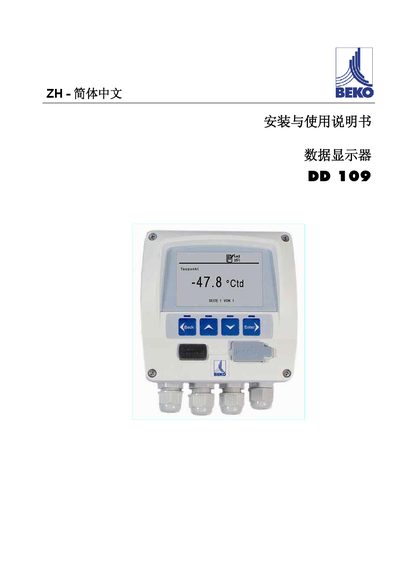

This manual provides step‑by‑step instructions for installing the Beko DD 109 date display. It includes safety precautions, mounting guidelines, wiring diagrams and connection details required for proper setup.
The document also lists the technical data of the unit, such as input voltage range, current draw, operating temperature limits and physical dimensions, helping installers verify compatibility with the intended environment. This manual is written in Chinese.
| Input voltage | 100‑240 VAC, 50‑60 Hz |
|---|---|
| Power consumption | 10 VA |
| Current draw | 4‑20 mA |
| Operating temperature | -20 °C to 70 °C |
| Storage temperature | 0 °C to 50 °C |
| Dimensions (L×W×H) | 118 mm × 115 mm × 93 mm |
The unit operates from 100 V to 240 V AC at 50‑60 Hz.
It can be used between –20 °C and 70 °C.
The unit measures 118 mm × 115 mm × 93 mm.
