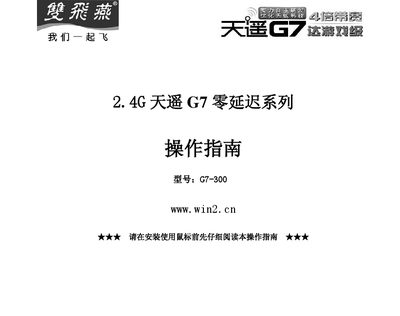

This is a user manual for the TianYao G7 series mouse. The mouse uses 2.4G wireless connection and can be used in Windows 2000/XP/Vista/Windows 7 systems. The mouse can be set up through the right-click 8-bit software. Support keyboard, mouse, office, document processing, multimedia, network and other 6 major categories of more than 30 functions. The mouse can also be paired through the pairing program.
This manual explains how to install the Nano receiver, power the mouse, and install the driver software on Windows systems. It covers the pairing process, battery‑level display, and how to configure gestures and shortcut keys through the provided software.
Advanced sections describe the mouse’s low‑power sleep modes, selectable transmission frequencies (125 Hz, 250 Hz, 500 Hz) with corresponding latency, multi‑user channel settings, and recommendations for avoiding signal interference from metal surfaces or PC chassis. This manual is written in Chinese.
| Battery voltage at 75 % charge | 2.2 V–2.39 V |
|---|---|
| Battery voltage at 50 % charge | 2.05 V–2.19 V |
| Battery voltage at 25 % charge | ≤2.04 V |
| Supported transmission frequencies | 125 Hz / 250 Hz / 500 Hz |
| Latency at 500 Hz | 2 ms |
| Latency at 250 Hz | 4 ms |
| Latency at 125 Hz | 8 ms |
Open the pairing program, press “Start Pairing”, remove the battery and reinstall it within 15 seconds; the software will show a 6‑digit pairing code.
Check the “Low battery notification” option; set the desired threshold (e.g., 25 %). When the level falls below, an alert appears in the lower‑right corner.
