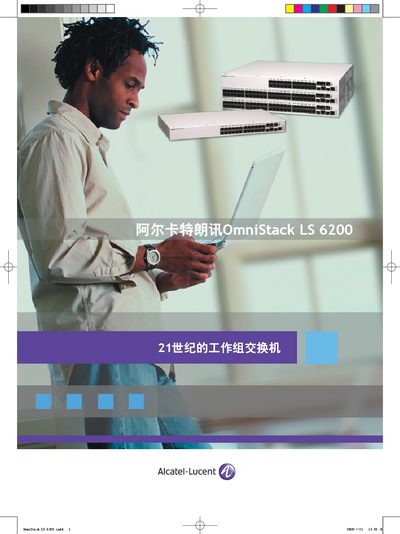

OmniStack LS 6200 is a workgroup switch introduced by Alcatel-Lucent. The switch provides line-rate Layer 2 forwarding and advanced Layer 2-4 services, supporting advanced QoS and security mechanisms to provide high-quality voice and video in a secure environment.
The OmniStack LS 6200 series is a fixed‑configuration 1U fast‑Ethernet switch designed for enterprise wiring closets, network edges and branch offices. It offers line‑rate L2 forwarding, L2‑L4 services, QoS, advanced security, and PoE for APs and IP phones. Various models provide 12, 24 or 48 ten‑hundred‑megabit RJ‑45 ports, two 10/100/1000 M RJ‑45 uplink ports and two combo ports that accept either copper or Mini‑GBIC SFP modules.
Key features include dual‑image firmware, web and CLI management, SNMPv1/v2/v3, RMON, VLAN stacking, 802.1w rapid spanning‑tree, link aggregation, ACLs, 802.1x authentication, and optional redundant AC/DC power supplies. The switch meets multiple IEEE standards (802.3, 802.1Q, 802.1x, etc.) and operates from 0‑50 °C with a compact 44 × 23 × 4.4 cm chassis. This manual is written in Chinese.
| Port Count | 12/24/48 ten‑hundred‑megabit RJ‑45 ports, plus 2×10/100/1000 M RJ‑45 uplinks and 2 combo ports |
|---|---|
| Switching Capacity | 12.8 Gbps (12‑port models) / 17.6 Gbps (48‑port models) |
| Stacking Bandwidth | 1 Gbps per stacking port, 4 Gbps total |
| PoE per Port | Up to 15.4 W per port (IEEE 802.3af) |
| PoE Power Budget | 75 W (OS‑LS‑6212P), 180 W (OS‑LS‑6224P), 380 W (OS‑LS‑6248P) |
| VLAN Capacity | 255 VLANs, 4094 VLAN tags |
| Physical Dimensions | 44 × 23 × 4.4 cm (W × D × H) |
| Weight | 2.65 kg (OS‑LS‑6212) |
The switch supports up to 255 VLANs and can handle 4094 VLAN tags.
Each PoE‑enabled port can deliver up to 15.4 W according to IEEE 802.3af.
It measures 44 × 23 × 4.4 cm (width × depth × height).
