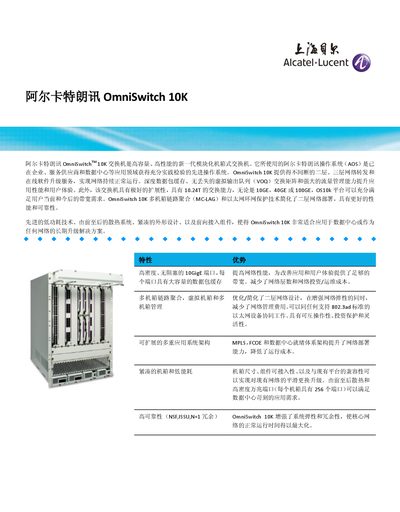

Alcatel-Lucent OmniSwitch 10K Switch is a high-performance, high-capacity new generation modular chassis switch. It has deep packet caching, lossless virtual output queue (VOQ) switching matrix and strong traffic management capabilities, which can improve application performance and user experience. In addition, the switch has excellent scalability, with 10.24T of switching capacity, whether it is 10GE, 40GE or 100GE, the OS10k platform can fully meet users' current and future bandwidth requirements. OmniSwitch 10K Multi-Chassis Link Aggregation (MC-LAG) and Ethernet Ring Protection Technology simplify the deployment of Layer 2 networks with better performance and reliability.
The OmniSwitch 10K is a high‑capacity, modular chassis‑based network switch that runs Alcatel‑Lucent's AOS operating system. It provides non‑stop Layer‑2/Layer‑3 forwarding, online software upgrades, deep packet buffering, and a loss‑less virtual output queue (VOQ) switching matrix.
The device supports 10‑, 40‑, and 100‑Gigabit Ethernet, offers multi‑chassis link aggregation (MC‑LAG), Ethernet Ring Protection (G.8032), and high‑availability features such as NSF, ISSU, and N+1 redundancy. Physical specifications include a 16U rack height, up to 256 10 GbE ports per chassis, and dual AC/DC power supplies. This manual is written in Chinese.
| Switching capacity | 10.24 Tbps |
|---|---|
| Maximum 10 GbE ports per chassis | 256 |
| Rack height | 16U (19 in. or 23 in. mounting) |
| Power supplies | 2 AC/DC power supplies |
| Operating temperature range | 0 °C to 45 °C |
The OmniSwitch 10K provides a switching capacity of 10.24 Tbps.
Each chassis can accommodate up to 256 10 GbE ports.
