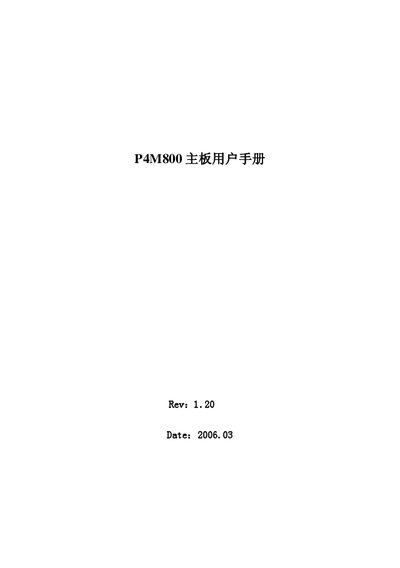

P4M800 motherboard user manual, introduces the features and characteristics of the motherboard, the supported CPU types, memory types, audio, network card, etc.
This manual covers the packaging contents, hardware features, and supported components of the VIA P4M800 motherboard. It details CPU, memory, storage, and peripheral interfaces, as well as chipset information.
Installation instructions include CPU and memory mounting, IDE/ATAPI and SATA connections, CMOS clearing, and BIOS configuration. The guide also explains power‑on defaults, security password setup, and PCI/PNP parameter settings. This manual is written in Chinese.
| CPU Support | Intel LGA775 Pentium 4 / Celeron D |
|---|---|
| Front Side Bus | 533 MHz / 800 MHz |
| Memory Types | DDR266 / DDR333 / DDR400 |
| Maximum Memory | 2 GB DDR |
| Chipset | VIA P4W800 (North Bridge) / VT8237R (South Bridge) |
| SATA Interfaces | 2 SATA ports, RAID 0/1/1+1/JBOD |
| USB Ports | 8 ports, USB 2.0 |
Set jumper JBAT1 to the clear‑CMOS position and keep it there while powering on.
The board supports FSB speeds of 533 MHz and 800 MHz.
There are two SATA ports, supporting RAID 0, RAID 1, RAID 1+1, and JBOD.
