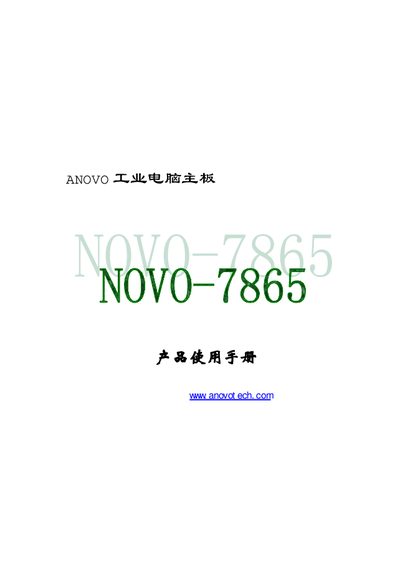

User manual for NOVO－7865 industrial computer motherboard
This manual introduces the ANOVO NOVO-7865 industrial computer motherboard, detailing its specifications such as the Intel 865GV chipset, support for Intel Pentium IV socket‑478 CPUs, dual DDR memory slots, SATA, IDE, video, audio, and network interfaces. It also covers safety guidelines, default jumper settings, and environmental requirements.
Installation instructions describe external connectors, power supply options (AT/ATX), CPU fan wiring, and how to connect video, audio, USB, and network ports. The BIOS chapter explains menu navigation, power‑management features, and advanced chipset options, while the driver CD section lists the provided drivers and step‑by‑step installation procedures. This manual is written in Chinese.
| Supported Processor | Intel Pentium IV socket‑478 (400/533/800 MHz FSB) |
|---|---|
| Chipset | Intel 865GV (GMCH) + 82801EB (ICH5) |
| Memory | 2 × 184‑pin DDR slots, DDR266/333/400 up to 2 GB, dual‑channel |
| IDE Interface | 2 × EIDE, Ultra ATA 33/66/100 |
| SATA Interface | 2 × SATA 1.0, 1.5 Gb/s |
| Video | Intel Extreme 2 graphics, shared memory up to 64 MB, max resolution 1600×1200 |
| Audio | Realtek ALC655 AC'97 codec, LINE_IN/LINE_OUT/MIC |
| Network (optional) | RJ45‑1 Intel 82562EM, RJ45‑2 Intel 82551ER, 10/100 M |
| Dimensions | 338.5 mm × 122 mm (L × W) |
| Operating Temperature | 0 °C – 60 °C |
| Power Requirements | AT/ATX, AT +5 V > 80 W, ATX +5 V > 15 A, +12 V > 10 A |
The board provides two 184‑pin DDR slots that support DDR266, DDR333, and DDR400 memory up to a total of 2 GB and operate in dual‑channel mode.
It uses a 2 M/4 M AWARD BIOS that is plug‑in and supports ACPI, APM 1.2, USB CD‑ROM, and other devices.
