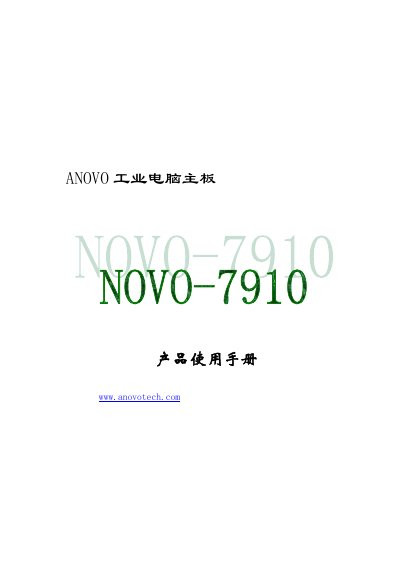

ANOVO industrial computer motherboard product manual, mainly introduces the characteristics, specifications, installation instructions, etc. of the product
The NOVO-7910 is an industrial‑grade, full‑length PICMG standard CPU card designed for rugged computer platforms. It supports Intel Pentium IV socket 478 processors, ATI 9100IGP chipset, dual‑channel DDR memory and a range of I/O interfaces.
The manual covers product specifications, safety guidelines, detailed installation of external connectors, jumper settings, BIOS menus, and how to use the supplied driver disc. It also includes wiring diagrams for video, network, and serial ports, as well as default jumper configurations for AT and ATX power supplies. This manual is written in Chinese.
| Processor support | Intel Pentium IV socket478, 400/533/800 MHz FSB, 1.4–3 GHz |
|---|---|
| Chipset | ATI 9100IGP (ATI RS350 + IXP300) |
| Memory | 2 × 184‑pin DDR slots, DDR266/333/400 up to 4 GB, dual‑channel |
| IDE interface | 2 EIDE ports, Ultra ATA 33/66/100, PIO mode 3/4 |
| SATA interface | 2 SATA ports, 1.5 Gb/s transfer speed |
| Audio codec | Realtek ALC655 AC'97, CD_IN/LINE_OUT |
| Network interface | Realtek RTL8100C, 10/100 M Ethernet |
| Dimensions | 338.5 mm × 122 mm |
| Operating temperature | 0 °C to 60 °C (32 °F to 140 °F) |
Disconnect the power, short pins 1 and 2 of jumper JP2, then restore the jumper to pins 2 and 3 before powering up again.
The board supports both AT and ATX power supplies; select the appropriate jumper setting for the chosen supply.
The motherboard provides a DVI output and a VGA (CRT) output supporting up to 2048×1536 resolution.
It has two 184‑pin DDR slots that accept DDR266/333/400 modules up to a total of 4 GB and support dual‑channel operation.
