The document introduces the features and usage of Samsung fully automatic washing machines, including air drying, five-step super clean washing, artificial intelligence, stainless steel diamond drum, magic filter, time reservation, and night wash functions.

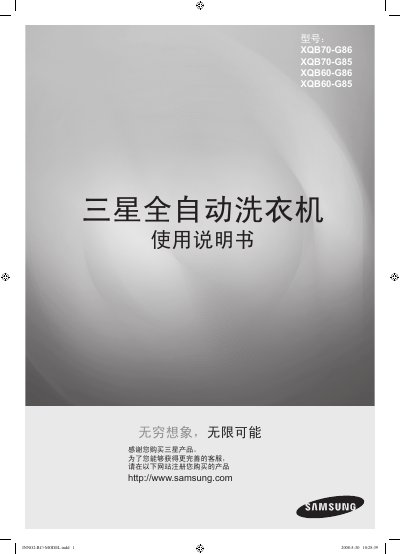

This manual covers everything needed to install and set up the Samsung XQB70‑G86, XQB70‑G85, XQB60‑G86 and XQB60‑G85 fully automatic washing machines, including site selection, leveling, water‑inlet and drain‑pipe connections, and noise‑reduction panel installation.
It also explains the control panel functions, washing programs, detergent usage, first‑wash procedure, regular cleaning, and provides a troubleshooting guide with safety warnings and technical specifications. This manual is written in Chinese.
| Product type | Wave‑type fully automatic washing machine |
|---|---|
| Model | XQB70‑G86 / XQB70‑G85 / XQB60‑G86 / XQB60‑G85 |
| Dimensions (W×D×H) | 540 mm × 565 mm × 900 mm |
| Standard water consumption | 144 L (6 kg) / 168 L (7 kg) |
| Weight | 32 kg |
| Rated capacity | 6.0 kg (XQB60) / 7.0 kg (XQB70) |
| Rated voltage / frequency | 220 V / 50 Hz |
| Rated power consumption | 330 W |
| Water pressure range | 0.03 MPa – 1 MPa |
| Spin speed | 715 r/min |
| Washing noise level (A‑weighted) | 48 dB |
| Spin noise level (A‑weighted) | 58 dB |
For a 6 kg load, use 30 g of standard detergent per 30 L of water.
No. The installation location should avoid direct sunlight and stay away from heat sources.
Disconnect the power supply before any drain‑pipe modification to avoid electric shock.
