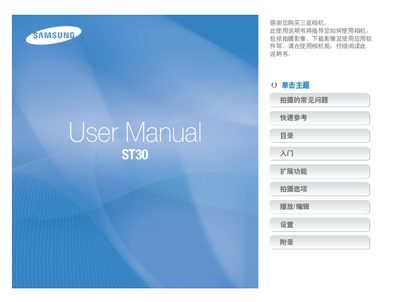

This manual provides step‑by‑step instructions for using the Samsung ST30 camera, including basic operation, shooting modes, playback, and editing. It also contains safety warnings, battery handling guidelines, and troubleshooting tips.
Detailed specifications such as shutter speed ranges, ISO sensitivity, sensor type, and lens information are listed, along with guidance on connecting the camera to a computer, printer, or TV. The appendix includes error messages, maintenance advice, and environmental information. This manual is written in Chinese.
| Shutter speed (Smart Auto) | 1/8‑1/1400 s |
|---|---|
| Shutter speed (Program) | 1‑1/1400 s |
| Shutter speed (Night) | 8‑1/1400 s |
| ISO sensitivity | Auto, 80‑3200 |
| Image sensor type | 1/3.0" CCD |
| Effective pixels | ≈10.13 MP |
| Total pixels | ≈10.44 MP |
| Lens focal length (3× zoom) | 4.1‑12.3 mm (35 mm equiv. 28‑84 mm) |
| Aperture range | F3.3‑F5.9 |
| Digital zoom (still) | 1.0×‑3.0× |
| Digital zoom (playback) | 1.0×‑11.4× |
| Display screen | 2.4" TFT LCD, ~112 K dots |
| Autofocus type | TTL AF (multi, centre, face‑detect) |
Set the flash option to “red‑eye reduction” or “red‑eye removal”.
