UQK-652-C-Z marine float level controller is a top mounting type marine float level controller produced by Liaoyang Shuanghua Instrument Co., Ltd. It is suitable for liquid level control in open containers of ships. The product has the characteristics of large control range, wide working temperature, high working pressure, high medium density, large contact capacity and high protection grade.
The UQK‑652‑C‑Z is a top‑mounting marine float level controller designed for level control in ship containers. It includes a self‑check function that allows the operating handle to verify controller and system status for safe operation.

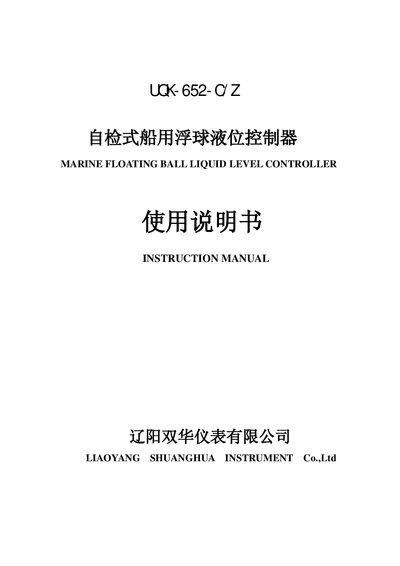

The manual lists technical specifications such as a 200–2000 nm controlling range, operating temperature from –20 °C to 120 °C, and IP66/IP68 protection. It also provides wiring diagrams, installation cautions, and ordering instructions.
| Controlling range | 200~2000nm |
|---|---|
| Working temperature | -20~120°C |
| Working pressure | 1.6MPa |
| Medium density | >0.6g/cm* |
| Contact capacity | 220V AC/DC 1A |
| Material | 3048 |
| Protection rating | IP66 or IP68 |
It can control liquid level from 200 to 2000 nm.
The controller works between –20 °C and 120 °C.
By moving the operating handle to detect the controller and system status, ensuring safe operation.
It is rated IP66 or IP68.
