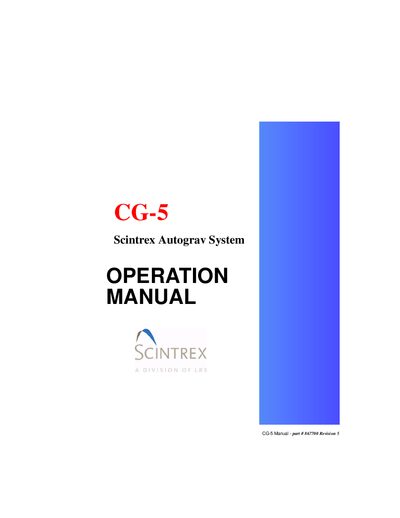

Scintrex CG-5 Autograv System Operation Manual

This manual provides an overview of the hardware and software features of the scintrex autograv system.

Brand: SCINTREX
Document type: User Manual
Language: English
Pages: 312
File format: PDF
File size: 4.7 MB
Published: 27 October, 2023
Updated: 27 October, 2023
MD5 checksum: CF034FC3DB95ADB25BAEBAF4D877CE02
PDF: Scintrex CG-5 Autograv System Operation Manual PDF

About this manual

This manual guides users through unpacking, powering up, and operating the CG-5 Autograv System. It covers hardware and software features, initial setup, menu navigation, and data acquisition procedures.

Additional sections describe data dumping via RS-232C or USB, memory management, service options, and field‑operation tips such as handling, noise reduction, and cold‑weather use.

What's inside

Getting Started
Operating the CG-5
Data Dumping
Memory Management
Service and Calibration
Field Data Acquisition

Specifications

Power source	Batteries or external supply
Power source	External supply
Data interfaces	RS-232C and USB ports
Data interfaces	USB port

Frequently asked questions

How do I power up the CG-5 for the first time?

The CG-5 can be powered by its internal batteries or by an external power supply.

How can I export data from the CG-5?

Data can be dumped using the RS-232C cable or the USB port with the SCTUTIL program.

How do I reset the CG-5 instrument?

Use the Resetting the CG-5 procedure described in the manual to restore default settings.
