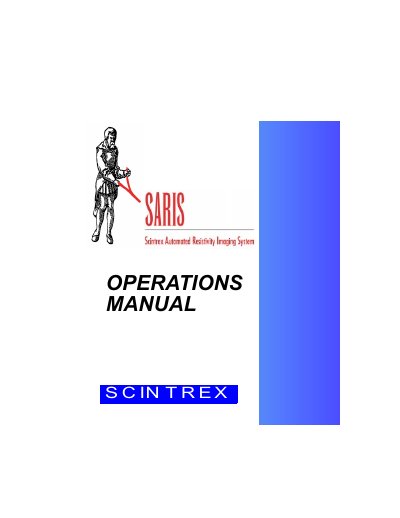

This manual describes the operation of the SARIS resistivity system
The document serves as a comprehensive operations guide for the Scintrex SARIS resistivity system. It details how to configure the instrument for various electrode arrays, including Schlumberger, Wenner, Offset Wenner, Pole-Dipole, Dipole-Dipole, In-line Pole-Pole, and Lateral Pole-Pole modes. The manual covers both sounding and profiling configurations suitable for groundwater, geotechnical, engineering, and archaeological applications.
| Output Power | 100W minimum in both 100 Ω and 2500 Ω loads |
|---|---|
| Operating Temperature | -20°C to +55°C |
| Water Resistance | IP65 |
| Power Supply Type | 24V, 7.5Ah clip-on Lead-Acid Battery |
| Battery Capacity | 180 W-h |
| Measuring Capacity (Standby) | >100 hours |
| Display Resolution | 320 by 240 quarter VGA monochrome LCD |
| Communication Interfaces | 12 MHz USB and RS-232 |
| Data Storage Capacity | >10,000 single readings |
The SARIS supports Schlumberger, Wenner, Offset Wenner, Pole-Dipole, Dipole-Dipole, In-line Pole-Pole, Lateral Pole-Pole, and Gradient arrays.
The SARIS provides an output of at least 100W into a 100 Ω load.
The system has a measuring capacity of over 100 hours for standby operation.
The SARIS operates within a temperature range of -20°C to +55°C.
