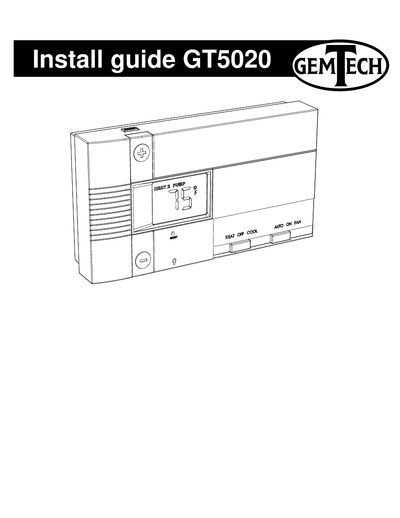

Gemtech GT5020 Thermostat Installation Guide

This document describes the steps to install GT5020 thermostat

Brand: Gemtech
Document type: Installation Guide
Language: English
Pages: 20
File format: PDF
File size: 380 KB
Published: 26 October, 2023
Updated: 26 October, 2023
MD5 checksum: F55AB31293CAB3C26806C907965A8BED
PDF: Gemtech GT5020 Thermostat Installation Guide PDF

About this manual

This guide provides safety precautions, wiring preparation, and detailed mounting instructions for the GT5020 thermostat. It explains how to label wires, select the proper gas/electric jumper, and configure heat‑pump differential settings.

Additional sections cover battery installation, optional C‑wire power, and troubleshooting tips, with a reference to Gemtech’s support website for further assistance.

What's inside

Safety Precautions
Label All Wires
Mount the GT5020
Gas‑Electric Selection
Heat Pump Differential
Install Batteries
Wire Connections
Customer Support

Specifications

Operating Voltage	24 V AC and millivolt systems
Maximum Current	1.0 A
Battery Type	2 AA alkaline batteries
Battery Life	well over 1 year
Optional Power Source	C‑wire (24 VAC only)

Frequently asked questions

What type of batteries does the GT5020 require?

The thermostat uses two AA alkaline batteries.

How long can the batteries last before replacement is needed?

The batteries will last well over one year, and should be replaced when the low‑battery indicator appears.

What is the maximum current the GT5020 can handle?

The thermostat is limited to a maximum of 1.0 A.

Can the GT5020 be powered by a C‑wire?

Yes, it can run on a C‑wire (24 VAC only) if one is available.
