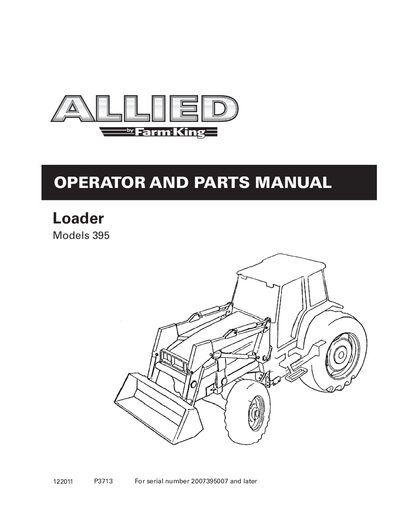

This manual introduces the use of the 395 loader, safety precautions, maintenance and other content.
This manual covers safe operation, installation, and maintenance of the Allied by Farm King 395 Loader. It includes safety symbols, important precautions, operating suggestions for loading and back‑filling, and procedures for attaching and removing the loader from a tractor.
The document also contains detailed specifications, bolt‑torque values, and parts lists for the sub‑frame, main frame, hydraulic plumbing, and cylinder assemblies. A pre‑delivery checklist, troubleshooting tips, and warranty information are provided to help owners keep the loader in optimal condition.
| Model number | 495 |
|---|---|
| Mounting height | 36" (nominal) |
| Typical range | 33" - 39" |
| Bore | 2.00 / 2.50 |
| Stroke | 20.63 |
| Maximum lift height | 120.3" (10.0') |
| Clearance with bucket dumped | 94.4" (7.9') |
| Reach at maximum height | 23.0" |
| Maximum dump angle | 30° |
| Bucket rollback angle | 30° |
| Digging depth | 3.4" |
| Overall height in carry position | 62.1" (5.2') |
| Rollback angle at full height | 106.5° |
| Estimated breakout force | 1560 Ibs |
| Estimated lift capacity | 1255 Ibs |
The manual uses alert, caution, warning, and danger symbols to indicate increasing levels of hazard.
All new operators or owners must review the manual before using the equipment and at least annually thereafter.
Three hose kits (A, B, and C) are described, each with different configurations for tractor remote or external valve operation.
The maximum lift height to the pivot point (full height) is 120.3 inches (10.0 feet).
