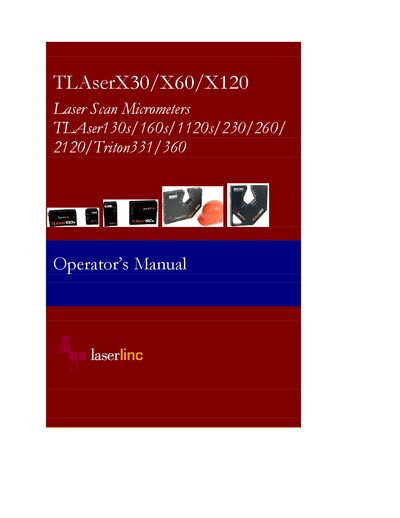

TLAserX30/X60/X120 Laser Scan Micrometers TLAser130s/160s/1120s/230/260/ 2120/Triton331/360 Operator’s Manual

About this manual

This manual introduces the LaserLinc TLAserX30/X60/X120 laser scan micrometers, describing their theory of operation, intended use, and safety requirements. It emphasizes proper handling, such as keeping covers installed and avoiding explosive atmospheres.

The document includes detailed installation and configuration steps, wiring and grounding instructions, software installation for Total Vu, preventive maintenance, troubleshooting, and compliance information for FCC and Canadian regulations.

What's inside

• Read Me First: Safety and Electromagnetic Compatibility
• Laser Micrometers—Theory of Operation
• Intended Use of the Equipment
• Compliance
• Installation and Configuration
• Connecting Safety Ground
• Getting Started
• Specifications
• Mounting Hole Drawings
• Cabling

Frequently asked questions

What safety precautions must be observed when using the laser scan micrometer?

Do not operate the scanner in an explosive atmosphere, keep all covers installed during operation, and use only the specified accessories and cables.

How do I install the Total Vu software on a Windows system?

Right‑click the Total Vu icon, choose Properties, set the program to run in Windows XP compatible mode, and adjust folder options to show hidden files if needed.

Is the equipment compliant with FCC regulations?

Yes, the equipment has been tested and found to comply with the limits for a Class A digital device under FCC part 15.
