This is a laser scan micrometer used to measure the size of objects. It supports multiple interfaces and can be connected to various devices. It is easy to operate and has high measurement accuracy.

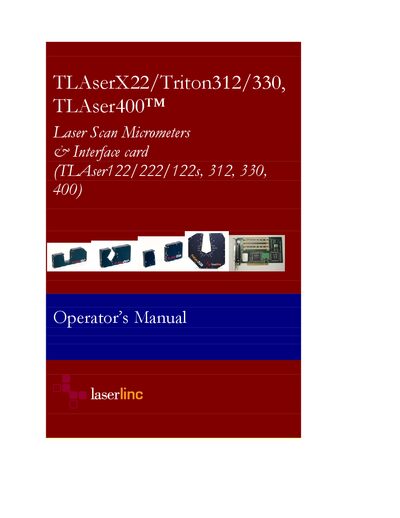

This manual begins with safety and electromagnetic compatibility information, outlining precautions such as avoiding explosive atmospheres, keeping all covers installed, and using only the specified accessories and cables. It also describes the theory of operation, intended use, and compliance details for the laser scan micrometers.
Later sections cover hardware installation, mounting, connections, preventive maintenance, troubleshooting, and step‑by‑step instructions for installing and configuring the Total Vu software that accompanies the devices.
Do not operate the scanner in an explosive atmosphere or where flammable gases or fumes may be present, keep all covers installed during operation, and use only the accessories and cables specified in the installation instructions.
