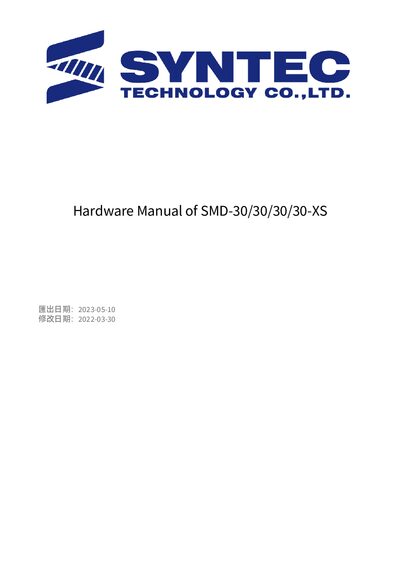

This file is the hardware manual of SMD-30/30/30/30-XS. It mainly introduces hardware specifications, appearance, dimension specifications, transportation and installation, environmental conditions and precautions, wiring and signal, connector and terminal definition, and regenerative resistor selection.
This hardware manual covers the SYNTEC SMD-30/30/30/30-XS servo drive, presenting its hardware specifications, dimensions, and safety precautions. It includes detailed wiring diagrams, connector definitions, and guidance for selecting regenerative resistors.
Key sections include the appearance and dimension details, power and control specifications, encoder interface options, and step‑by‑step installation and wiring instructions to ensure correct setup and safe operation. This manual is written in Chinese.
| Power Rated Voltage | 3-phase 200~230V 50/60Hz |
|---|---|
| Output Rated Current | 7.6 A |
| Over‑current Protection | 150% for 60 s, 200% for 1 s |
| Control Method | 3-phase full wave rectification, SVPWM –VVVF control |
| Encoder Supported Interfaces | Tamagawa, SYNNET, NIKON, ABZ, Serial, SSI, BiSS |
| PC Interface | USB Controller Serial Communication |
| Digital Input Ports | 4 ports, function alterable |
| Digital Output Ports | 2 ports, function alterable |
It requires a 3‑phase supply of 200 V to 230 V at 50 Hz or 60 Hz.
The drive provides four digital input ports that can be configured for different functions.
Supported encoder interfaces include Tamagawa, SYNNET, NIKON, ABZ, Serial, SSI and BiSS.
The manual recommends encoder wiring of 22 AWG×2C plus 24 AWG×2P with 90 % coverage.
