Nilfisk ES300/ES400 Parts List

This is a parts list for a high pressure washer

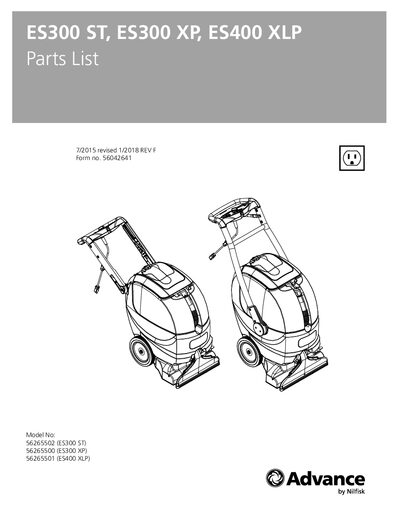

Nilfisk ES300/ES400 Parts List - cover page
Brand
Nilfisk
Category
Cleaning machines
Document type
Parts List
Language
English
Pages
29
File format
PDF
File size
6.2 MB
Published
19 October, 2023
Updated
19 October, 2023
MD5 checksum
A1F57D47D37CDFBC2B147DF9F4CD2CED

About this manual

This document serves as a comprehensive parts list for the Nilfisk ES300 ST, ES300 XP, and ES400 XLP carpet cleaning machines. It provides detailed breakdowns of components for the Base System, Decal System, Handle Systems (16ST, 16XP, 18XLP), Recovery System, and Solution Systems. The list includes specific part numbers, quantities, and descriptions for screws, motors, valves, nozzles, and assemblies specific to each model variant.

What's inside

  • Base System
  • Decal System
  • Handle System 16ST
  • Handle System 16XP
  • Handle System 18XLP
  • Recovery System
  • Solution System
  • Options & Accessories
  • Brush Selector Guide
  • Ladder Diagrams

Specifications

Model Numbers56265502 (ES300 ST), 56265500 (ES300 XP), 56265501 (ES400 XLP)
Document RevisionREV F
Motor Voltage115 Vdc
Circuit Breaker Rating5a
Rectifier Rating35 Amp

Frequently asked questions

What are the model numbers for the ES300 ST, ES300 XP, and ES400 XLP?

The model numbers are 56265502 for the ES300 ST, 56265500 for the ES300 XP, and 56265501 for the ES400 XLP.

How do I order parts for this machine?

You must use the part numbers from the 'Ref. No.' columns in the list and specify the model number and serial number of the machine.

What is the part number for the 16-inch Nylon Brush Assembly?

The part number for the 16-inch Nylon Brush Assembly is 56265044.
