Condor Door Operator Installation Manual

Describes the steps to install a door operator

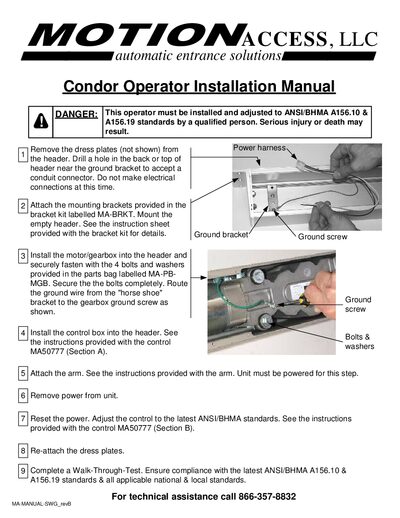

Condor Door Operator Installation Manual - cover page
Brand
Condor
Document type
Installation Guide
Language
English
Pages
1
File format
PDF
File size
116 KB
Published
18 October, 2023
Updated
18 October, 2023
MD5 checksum
4BC686F3C15EA7EC6C12149CCB2A53BC
PDF
Condor Door Operator Installation Manual PDF

About this manual

This guide explains how to install and adjust the Condor door operator. It is intended for qualified personnel and includes safety warnings and detailed steps for mounting, wiring, and testing.

The manual references ANSI/BHMA A156.10 and A156.19 standards and includes a walk‑through test to verify compliance after installation.

What's inside

  • Safety Warning
  • Removing Dress Plates
  • Mounting Brackets Installation
  • Motor/Gearbox Installation
  • Control Box Installation
  • Power Reset and Adjustment
  • Walk‑Through Test

Specifications

Compliance StandardsANSI/BHMA A156.10 & A156.19

Frequently asked questions

What standards must the installation meet?

The installation must comply with ANSI/BHMA A156.10 and A156.19 standards.
