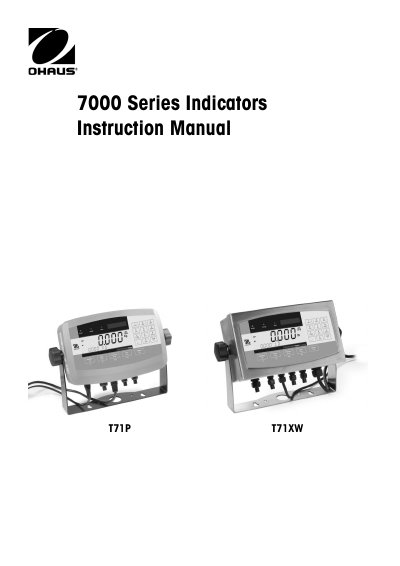

7000 Series Indicators Instruction Manual covers the safety precautions, installation, and settings of the product
The document serves as a comprehensive instruction manual for the 7000 Series Indicators, specifically models T71P and T71XW. It details safety precautions, an overview of parts and controls, and step-by-step guides for installation including unpacking, external connections (scale base, RS232, power), and mounting bracket attachment.
The manual covers extensive configuration options through various menu structures such as Settings, Readout, Mode, Unit, GMP, Print, COM, I-O, Menu Lock, and Key Lock. It explains operational procedures for weighing, parts counting, percent weighing, dynamic weighing, and check weighing modes. Additionally, it includes sections on serial communication commands, legal for trade settings, maintenance, troubleshooting, and technical specifications.
| Operating temperature range | -10°C to 40°C (14°F to 104°F) |
|---|---|
| Maximum displayed resolution | 1:50,000 |
| Load cell excitation voltage | 5 VDC |
| Housing dimensions (T71P) | 260 x 71 x 168 mm |
| Net weight (T71P) | 1.5 kg |
The indicator supports Kilogram, Gram, Pound, Ounce, Pound:Ounce, Tonne, and Custom units.
The maximum counting resolution for these indicators is 1:500,000.
Both models include RS232 and External Input interfaces as standard.
