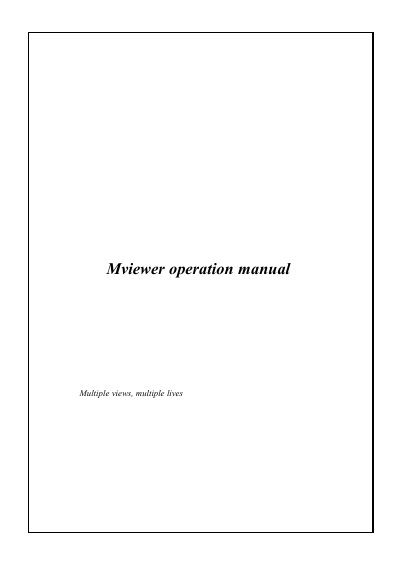

Mviewer multi-screens splitter operational manual, introduces the specifications, appearance, functions and usage methods of Mviewer multi-screens splitter
The document serves as an operation guide for the Mviewer MV103-HDVE PRO, a device designed to split a single high-resolution input signal into three separate outputs. It details the system specifications, including maximum pixel frequencies and supported resolutions up to 5040x1050 @60Hz.
The manual outlines hardware installation steps for connecting the unit between a PC graphics card and multiple monitors using DVI cables or converters. It also describes how to use the MviewCustomerTool software to configure communication settings, select specific resolutions for each output screen, and enable wide-mode timings.
Users must install and run the MviewCustomerTool software to select specific resolutions for each of the three list boxes.
Yes, if the DDC channel in the DVI-cable does not work, users can connect an RS-232 cable and select Serial RS-232 in the settings.
