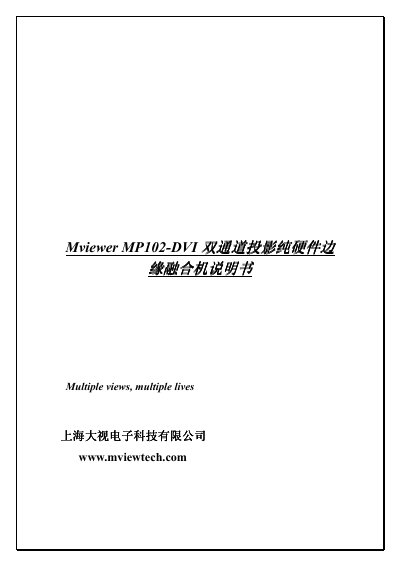

The Mviewer MP102-DVI manual provides specifications, installation steps, and operation instructions for the dual‑channel hardware edge‑blending device.
The MP102-DVI is a pure‑hardware edge‑blending unit that expands a single PC graphics output to two projectors and performs real‑time image processing to create a seamless blended image. It supports DVI‑dual‑link input, programmable blending width, colour correction, and works transparently with Windows, Linux and macOS.
The manual covers functional description, product features, technical specifications, panel layout, installation and wiring, software configuration, safety guidelines and typical application scenarios such as museums, exhibition halls and command centers. This manual is written in Chinese.
| Input interface type | 1 dual‑channel DVI (dual link) |
|---|---|
| Output interface type | 2 DVI‑I (includes VGA analog output) |
| Maximum input video pixel frequency | 330 MHz |
| Maximum output video pixel frequency | 165 MHz |
| Power supply | 5 V / 2 A DC adapter |
| Dimensions | 165 mm × 130 mm × 28 mm |
| Weight | 500 g |
| Operating temperature | 14 °F – 131 °F (-10 °C – 55 °C) |
| Storage temperature | -4 °F – 158 °F (-20 °C – 70 °C) |
| Relative humidity | 0‑80 % (non‑condensing) |
| Maximum altitude | 10,000 ft |
| Warranty | 2 years |
The device requires a 5 V / 2 A AC‑DC power adapter, which is included with the unit.
The product is covered by a two‑year warranty.
