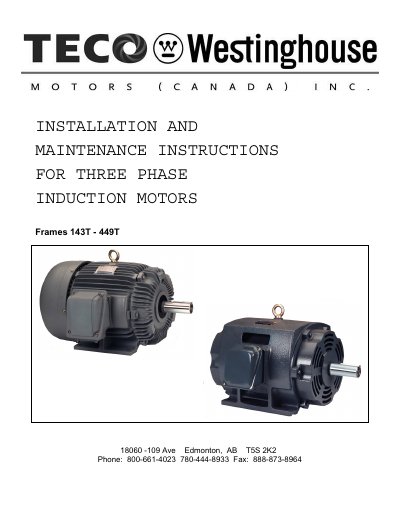

TECO-Westinghouse 143T-449T Three-Phase Induction Motor Installation and Maintenance Manual

This is a three-phase induction motor installation and maintenance manual

Brand: TECO-Westinghouse
Category: Motor
Document type: User Manual
Language: English
Pages: 9
File format: PDF
File size: 554 KB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: 143T - 449T
MD5 checksum: 1A45DBA85136D222AA1974AA98925DA8
PDF: TECO-Westinghouse 143T-449T Three-Phase Induction Motor Installation and Maintenance Manual PDF

About this manual

This manual provides installation and maintenance instructions for TECO-Westinghouse three-phase induction motors with frames 143T through 449T. It covers receiving inspections, safety precautions, location requirements, and mounting procedures including alignment and torque specifications.

What's inside

Receiving
Safety Precautions
Location
Mounting
Power Supply & Connections
Start Up
Testing
Maintenance Inspection
Lubrication
Renewal Parts

Specifications

Frame Sizes	143T - 449T
Voltage Tolerance	-10% of nameplate voltage
Frequency Tolerance	-5% of nameplate frequency
Recommended Grease	ExxonMobil Polyrex EM grease
Lubrication Interval (Standard)	7 years for 1-30 Hp, 1800 rpm

Frequently asked questions

What grease is recommended for lubrication?

Use ExxonMobil Polyrex EM grease or equivalent polyurea based grease unless special grease is specified on the nameplate.

How do I change the motor rotation?

Interchange any two leads of a three-phase motor after the motor has stopped completely.

When should I check the insulation resistance?

Check the insulation resistance if the motor has been in storage for an extensive period or subjected to adverse moisture conditions.
