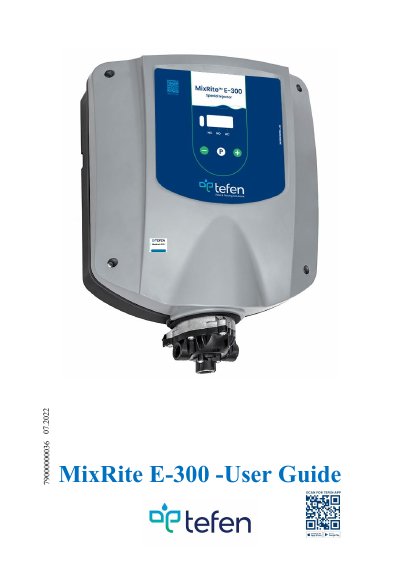

The MixRite E-300 fertilizer pump is a electric dosing pump that directly injects liquid additives into water lines. The E300 is operated by an AC/DC irrigation controller.
The MixRite E-300 is an electric dosing pump designed to inject liquid additives, such as fertilizers, directly into water lines for irrigation systems. It operates using an AC/DC irrigation controller and features a self-priming capability of up to 1.5 meters vertically. The pump is constructed with a PP pump house, Viton piston, and Santoprene diaphragm to ensure durability and chemical resistance.
| Power Supply | 220AC / 110AC / 12DC |
|---|---|
| Power | 80W |
| Water Connection | 3/8"-18 NPT Female |
| Max Additive Temperature | 77 C° (170 F°) |
| Priming Capability | Up To 1.5m (5 Ft.) Vertical |
| Max Inlet Pressure | 2.1 Bar (30 PSI) |
| Max Flow | 314 L/H (1.38GPM) at 1 bar |
| Max Pressure | 5.0 bar (72 psi) |
| Ambient Temperature | Upto 40°C |
| Diaphragm Material | Santoprene |
| Piston Material | Viton |
| Pump House Material | PP |
Press the (+) and (-) buttons simultaneously to Start or Stop the pump.
Always discharge the liquid end before servicing the pump, and empty and rinse it if it has been used with hazardous or unknown chemicals.
