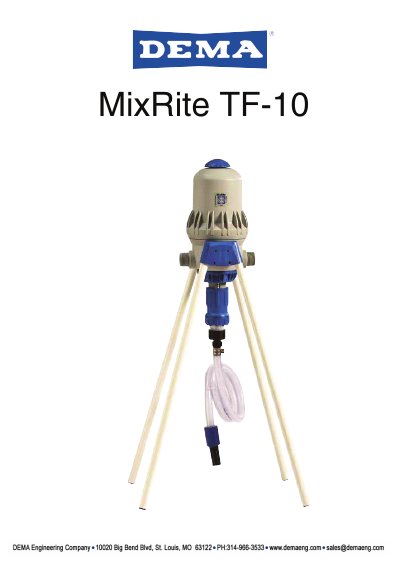

MixRite TF 10 Fertilizer and Chemicals Injector is a proportioning dosing injector produced by MixRite, which can be used for proportioning and injection in the water line.
The MixRite TF 10 is a proportioning dosing injector designed to add fertilizers and chemicals to water lines. The device operates under specific concentration ranges depending on the model: 0.1% to 1% for Model 01, 0.2% to 2% for Model 02, and 1% to 5% for Model 05.
Installation involves connecting the injector to a water line using either threaded couplings (BSPT or NPT) or plastic fittings for polyethylene pipes. The manual details setups for direct installation on irrigation lines, bypass lines for high flow rates, and configurations involving two injectors in parallel.
| Operating Concentration (Model 01) | 0.1% to 1% |
|---|---|
| Operating Concentration (Model 02) | 0.2% to 2% |
| Operating Concentration (Model 05) | 1% to 5% |
Turn the adjustment control nut; turning it counterclockwise increases the amount of fertilizer metered, while turning it clockwise decreases it.
The device operates in the following conditions: 0.1% to 1% for Model 01, 0.2% to 2% for Model 02, and 1% to 5% for Model 05.
