This manual provides guidance for users of the CA-410 probe and CA-S40 software for display color analysis, covering basic operations, safety precautions, and measurement methods.

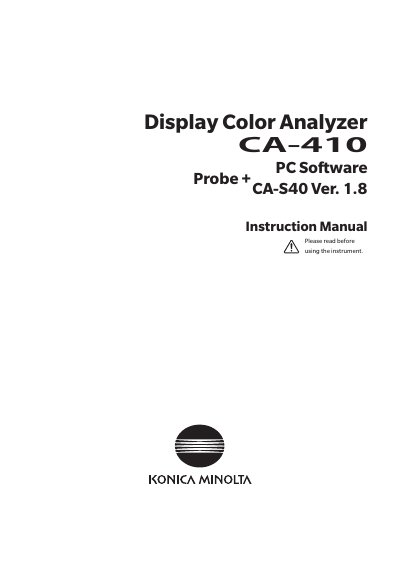

This document serves as the instruction manual for the Konica Minolta CA-410 Display Color Analyzer and its associated CA-S40 Ver. 1.8 PC software. It provides essential safety precautions, operating environment requirements, and general notes for users before utilizing the instrument to measure the color, luminance, and flicker of various color displays.
The manual details specific safety warnings regarding electric shock and fire, proper handling of cables and plugs, and restrictions on disassembly. It also outlines environmental conditions for use and storage, including temperature, humidity, and altitude limits, as well as cleaning procedures for the instrument and its optical lens.
| Measurement Targets | color, luminance, and flicker of various color displays |
|---|---|
| Operating Temperature | 10 and 35°C |
| Operating Humidity | 85% or less |
| Maximum Altitude | 2,000 m |
| Software Version | 1.8 |
No, the instrument is designed exclusively for indoor use, and outdoor use is prohibited.
Turn the power OFF immediately and contact a KONICA MINOLTA-authorized service facility.
To maintain measurement accuracy, the instrument should be inspected once a year.
