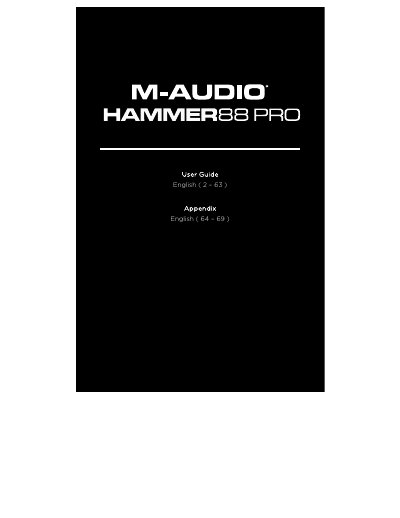

M-Audio Hammer 88 Pro Keyboard User Guide

About this manual

The M-Audio Hammer 88 Pro is a velocity-sensitive MIDI keyboard controller designed to control Digital Audio Workstations (DAWs) and virtual instruments. The document details how to connect the device via USB, select the correct operating system, and configure it for specific DAWs like MPC Beats, Pro Tools, and Ableton Live Lite.

The guide explains the initial setup process, including selecting the PC operating system and choosing between DAW and Virtual Instrument modes. It also covers hardware connections for external synthesizers and the configuration of the 5-pin MIDI output to send keys, USB data, or both to external gear.

What's inside

• Introduction
• Box Contents
• Initial Setup - PC Selection
• Initial Setup - DAW Setup
• Initial Setup - Virtual Instrument Setup
• Installing Included Software
• Connection Diagram
• Features
• Keybed and Controls
• MIDI Output Configuration

Frequently asked questions

What is the Hammer 88 Pro used for?

The Hammer 88 Pro is used to control a DAW's faders, buttons, knobs, pads, shortcuts, and virtual instrument controls.

How do I connect the Hammer 88 Pro to a computer?

Connect the keyboard to your computer using the included USB cable, plugging the USB-B end into the keyboard and the USB-A end into the computer.

What happens if I connect the Hammer 88 Pro to a USB hub?

If you connect the keyboard to a USB hub with other devices, it is recommended to use a powered USB hub.
