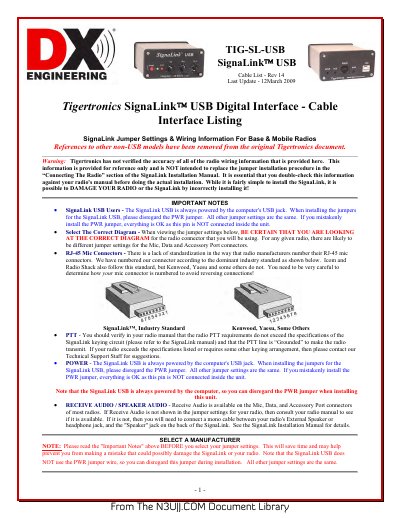

This file is a cable interface listing for the Tigertronics SignaLink™ USB Digital Interface, including jumper settings and wiring information for base and mobile radios.
The document serves as a reference guide for users of the Tigertronics SignaLink USB digital interface. It lists specific wiring configurations and jumper settings required to connect the device to the microphone, data, or accessory ports of numerous base and mobile radios from manufacturers including Icom, Yaesu, Kenwood, Elecraft, and Azden.
Users are warned that this information is for reference only and should not replace the official installation manual. The guide includes detailed pin-out diagrams for different connector types (8-pin round mic, RJ-45, 6-pin mini DIN data, and various DIN accessory ports) and notes specific compatibility issues or required jumper modifications for certain radio models.
| Power Source | Computer's USB jack |
|---|---|
| PWR Jumper Usage | Disregard for USB models |
No, it is provided for reference only and you must double-check information against your radio's manual.
You should disregard the PWR jumper because the unit is powered by the computer's USB jack.
Everything is OK because this pin is not connected inside the unit.
