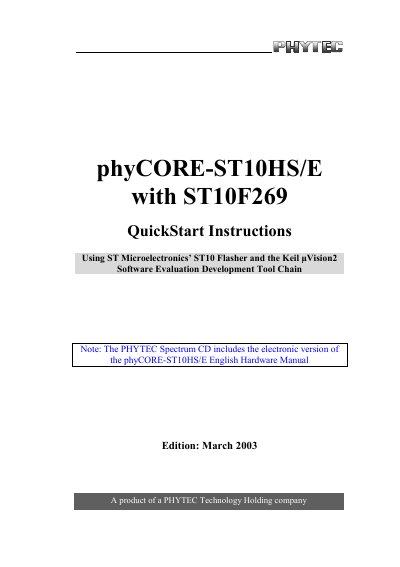

This manual describes how to use the PHYTEC phyCORE-ST10HS/E development board, including connecting the development board, software installation, programming download, and using the development board's examples.
This document serves as a QuickStart guide for the PHYTEC phyCORE-ST10HS/E Single Board Computer (SBC). It provides instructions for setting up the Rapid Development Kit, including the installation of the Keil uVision2 software development tool chain and the ST Microelectronics ST10 Flasher. The guide details how to interface the board with a host PC and download example programs.
| Controller | ST Microelectronics ST10F269 |
|---|---|
| Dimensions | 60 x 53 mm |
| Clock Speed | 40 MHz |
| SRAM | 512 kByte |
| On-chip Flash | 256 kByte |
| On-board Flash | up to 2 Mbyte |
| Operating Temperature | 0 to +70°C |
| Power Requirement | 220 mA |
The kit requires the Keil uVision2 Software Evaluation Development Tool Chain and ST Microelectronics' ST10 Flasher.
You need the phyCORE Development Board HD200 with the included DB-9 serial cable and AC adapter supplying 5 VDC /min. 500 mA.
You can download example code such as 'Blinky' and 'Hello' using the ST Microelectronics ST10 Flasher.
