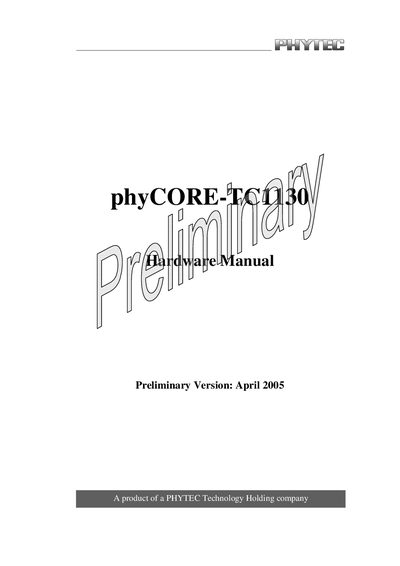

phyCORE-TC1130 Hardware Manual, details the hardware functions and characteristics of phyCORE-TC1130.
The phyCORE‑TC1130 is a subminiature (72 × 57 mm) insert‑ready Single Board Computer that incorporates Infineon’s TC1130 Tricore microcontroller. It offers high‑density 0.635 mm pitch connectors on both sides, allowing the board to be plugged into target applications like a "big chip".
The manual covers the board’s block diagram, pinout, jumper configurations, power‑on reset characteristics, memory map, serial interfaces (RS‑232, CAN, I²C, Ethernet), and provides technical specifications as well as handling hints for developers and integrators.
| Dimensions | 72 mm × 57 mm |
|---|---|
| Connector pitch | 0.635 mm |
| Microcontroller | Infineon TC1130 Tricore |
The board measures 72 mm by 57 mm.
It uses Infineon’s TC1130 Tricore microcontroller.
The connectors have a high‑density pitch of 0.635 mm.
