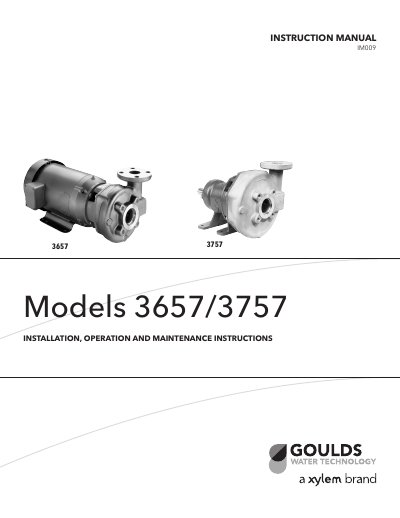

Goulds 3657/3757 Centrifugal Pump Installation Operation and Maintenance Instructions

This manual provides installation, operation and maintenance instructions for the Goulds 3657/3757 centrifugal pumps.

Brand: Goulds
Category: Other
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 851 KB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: BFF42604F4E3D934EDD592B0383F3E73
PDF: Goulds 3657/3757 Centrifugal Pump Installation Operation and Maintenance Instructions PDF

About this manual

This manual provides comprehensive guidance for the installation, operation, and maintenance of Goulds Models 3657 (close-coupled) and 3757 (frame-mounted) single-stage end-suction pumps. These pumps are designed for ultra-pure water systems, OEM applications, food and beverage processing, and chemical services not demanding ANSI standard equipment.

What's inside

Safety Instructions
Description and Specifications
Important Information
Installation
Suction Piping
Discharge Piping
Motor to Pump Shaft Alignment
Operation
Maintenance
Trouble Shooting Guide

Specifications

Impeller Material	AISI TYPE 316 stainless steel
Casing Material	AISI TYPE 316 stainless steel
Shaft Sealing	Mechanical seal
Maximum Liquid Temperature	212°F (100°C)
Maximum Liquid Temperature (Optional)	250°F (120°C)

Frequently asked questions

What are the maximum operating liquid temperatures?

The standard seal supports 212°F (100°C), while an optional high temperature seal supports 250°F (120°C).

Do close-coupled units require field alignment?

No, close-coupled units do not require field alignment.

Can the suction isolation valve be used to throttle the pump?

No, the suction isolation valve should not be used to throttle the pump.
