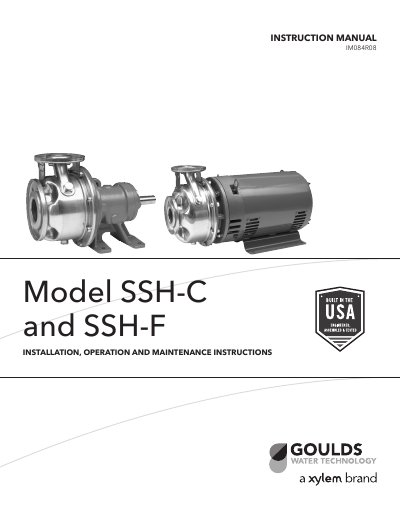

This manual provides installation, operation, and maintenance instructions for SSH-C and SSH-F model pumps, including alignment, suction piping, discharge piping, rotation, operation, maintenance, disassembly, reassembly, troubleshooting guide, and components.
This manual provides comprehensive instructions for the installation, operation, and maintenance of Goulds SSH-C and SSH-F pumps. It covers critical safety warnings, electrical requirements, and specific installation procedures for both close-coupled and frame-mounted units. The document details proper piping arrangements for suction and discharge, alignment checks, and operational limits to ensure safe and efficient performance.
| Maximum Liquid Temperature (Standard Seal) | 212°F (100°C) |
|---|---|
| Maximum Liquid Temperature (High-Temp Seal) | 250°F (120°C) |
| Maximum Operating Pressure | 230 PSI (15 bars) |
| Maximum Starts Per Hour | 20 |
The maximum allowable operating pressure is 230 PSI (15 bars).
The maximum number of starts per hour is 20, which must be evenly distributed.
No, the pump should not be operated at or near zero flow as this can cause the liquid to flash to vapor and damage rotating parts.
