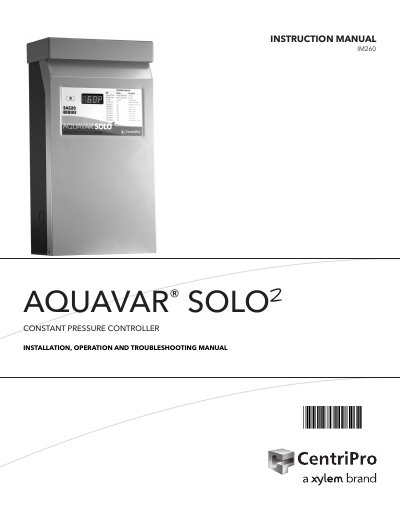

Xylem SOLO2 Constant Pressure Controller Installation and Operation Manual

This manual provides instructions for installation, operation and troubleshooting of the AQUAVAR® SOLO2 constant pressure controller.

Brand: Xylem
Category: Other
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.6 MB
Published: 15 October, 2023
Updated: 15 October, 2023
MD5 checksum: 1CD663DE849EC132467092D109E06423
PDF: Xylem SOLO2 Constant Pressure Controller Installation and Operation Manual PDF

About this manual

This manual provides instructions for the installation, operation, and troubleshooting of the AQUAVAR SOLO2 Constant Pressure Controller. It covers safety requirements, typical installation procedures for the controller, pump, and piping, and specific wiring instructions for the pressure transducer and motor drop cable. The document emphasizes the use of waterproof heat shrink kits for underwater splices and proper grounding practices.

What's inside

Safety Instructions
Typical Installation
Pump and Piping
Wiring
Tank Sizing
Installer Pre-Start Selections
Start Up Procedure
Run/Stop Input Options
Advanced Menu
Troubleshooting

Specifications

Operating Temperature Range	14ºF to +122ºF (-10ºC to +50ºC)
Maximum Transducer Vacuum Protection	17" Hg
Maximum Transducer Cable Length	200'

Frequently asked questions

Can the controller be used around swimming pools or open bodies of water?

No, the controller is not designed for use around swimming pools, open bodies of water, hazardous liquids, or where flammable gases exist.

What type of input power is required?

The controller must not be used with GFCI input power, as this will cause nuisance faults.

What is the recommended method for splicing drop cable to motor leads?

Connections must be made using a waterproof heat shrink kit; vinyl electrical tape is not acceptable.
