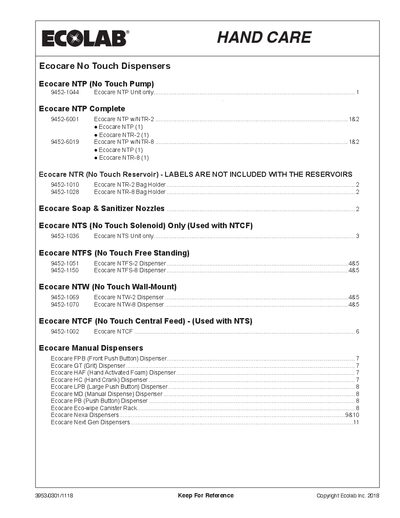

Ecolab Ecocare No Touch Dispensers Instruction Manual

This document is an instruction manual for Ecocare No Touch Dispensers, which includes product models, product descriptions, product pictures, etc.

Brand: Ecolab
Document type: User Manual
Language: English
Pages: 13
File format: PDF
File size: 1.2 MB
Published: 13 October, 2023
Updated: 13 October, 2023
MD5 checksum: 28B3B556711BFD29B2E7AF413E06C45A
PDF: Ecolab Ecocare No Touch Dispensers Instruction Manual PDF

About this manual

This manual provides detailed part numbers and descriptions for the Ecocare line of no‑touch dispensers, including pumps, reservoirs, solenoids, wall‑mount and free‑standing units, as well as manual dispensers. It also includes replacement part tables and notes on ordering accessories.

The document is organized by dispenser type (e.g., NTP, NTR, NTS, NTFS, NTW, NTCF) and includes separate sections for soap and sanitizer nozzles, touch‑free models, and next‑gen units. Labels for reservoirs are not included and must be ordered separately.

What's inside

Ecocare No Touch Dispensers
Ecocare NTP (No Touch Pump)
Ecocare NTR (No Touch Reservoir)
Ecocare NTS (No Touch Solenoid)
Ecocare NTFS / NTW (Free Standing & Wall‑Mount)
Ecocare Manual Dispensers
Replacement Parts
Soap & Sanitizer Nozzles
Touch Free Dispensers
Next Gen Dispensers

Specifications

Timer range	.1 to 102 seconds
Nozzle body size	1/8 FNPT SST
Conduit locknut size	1/2

Frequently asked questions

What part number is the conduit locknut for Ecocare dispensers?

The conduit locknut part number is 8331-2017.

Which part number corresponds to the soap nozzle body?

The soap nozzle body part number is 8538-0384.

Are labels included with the reservoirs?

No, labels are not included with the reservoirs and must be ordered separately.

What is the part number for the NTR‑2 bag holder?

The NTR‑2 bag holder part number is 9452-7538.
