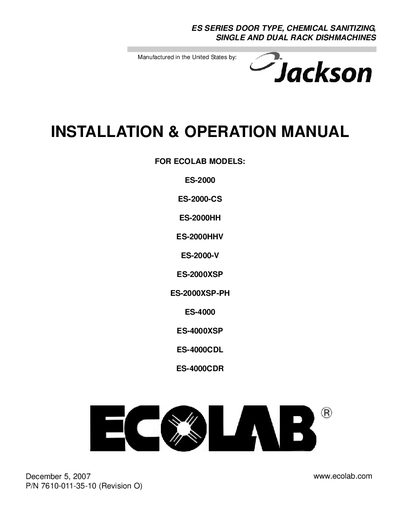

Installation and operation guide for Ecolab ES-2000 and ES-4000 series door‑type chemical sanitizing dishmachines.
This manual provides detailed specifications, installation steps, electrical wiring, and operation instructions for the Ecolab ES‑2000 and ES‑4000 series door‑type chemical sanitizing dishmachines. It includes dimensions, water and electrical requirements, and performance capabilities for each model.
The document also covers preventative maintenance procedures, troubleshooting tips, service repair kits, and a comprehensive parts list with schematics to aid technicians and end‑users in proper setup and upkeep of the equipment.
| Operating capacity (ES‑2000) | 40 racks per hour |
|---|---|
| Operating capacity (ES‑4000) | 80 racks per hour |
| Wash pump motor horsepower | 3/4 hp |
| Electrical requirements (ES‑2000/ES‑4000) | 115 V, 60 Hz, single phase |
The ES‑2000 can process 40 racks per hour.
The ES‑4000 can process 80 racks per hour.
The ES‑4000 requires 115 volts, 60 hertz, single‑phase power.
A recommended wash temperature is 140 °F.
