Ranger is a special type of sensor with a high-speed 3D imaging and multi-functional camera. It can measure the height, shape, and volume of objects, detect surface defects, and grade object quality. Ranger offers various models and installation options to meet different application requirements.
The Ranger 3D sensor series (C, E, D) provides high‑speed 3‑D imaging up to 35,000 frames per second, multiple scanning modes, and flexible integration via CameraLink or Gigabit Ethernet. It supports various external lighting and lens options for applications ranging from precision electronics inspection to large‑scale wood grading.

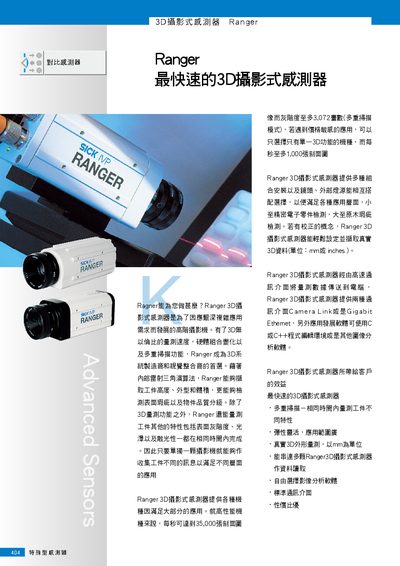

The manual includes product introductions, technical data, interface details, power requirements, dimensions, and a full list of optional accessories and part numbers for each model. This manual is written in Chinese.
| Maximum 3D image rate | 30,000 images/second |
|---|---|
| Maximum multi‑function scan rate | 10,000 scans/second |
| Resolution (horizontal/vertical) | 3,072 x 3,072 pixels |
| Power supply voltage | 12‑24 V DC |
| Power consumption | 8 W, 1.25 A |
| Dimensions (C model) | 50 mm × 50 mm × 110 mm |
| Weight (C model) | 390 g |
| Industrial protection rating | IP20 |
The Ranger C uses a CameraLink interface.
The sensors can capture up to 30,000 3‑D images per second.
They require a 24 V DC power supply.
