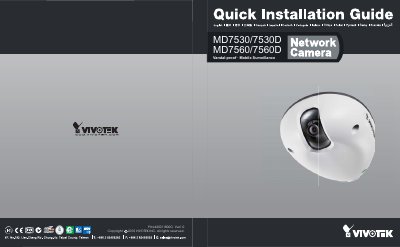

MD7530/7530D MD7560/7560D Vandal-proof . Mobile Surveillance SC - 21 Network Camera

This document describes the features and characteristics of the MD7530/7530D MD7560/7560D Vandal-proof . Mobile Surveillance SC - 21 network camera.

Brand: VIVItek
Document type: User Manual
Language: Chinese
Pages: 12
File format: PDF
File size: 2.7 MB
Published: 01 February, 2023
Updated: 28 September, 2023
MD5 checksum: 5814CEB2E0F1EE0330BE98231C31D337
PDF: MD7530/7530D MD7560/7560D Vandal-proof . Mobile Surveillance SC - 21 Network Camera PDF

About this manual

The document serves as a user guide for the Vivitek MD7530/MD7560 and MD7530D/MD7560D series of vandal-proof mobile surveillance network cameras. It covers safety warnings, hardware installation methods including ceiling and wall mounting, grounding procedures, and packaging contents verification. This manual is written in Chinese.

What's inside

Installation Warning
Package Contents Check
Hardware Installation (Ceiling)
Hardware Installation (Wall)
Grounding Connection
Standard Network Connection
PoE Network Connection
Software Installation Wizard
Camera Adjustment and Focus

Specifications

Waterproof Rating	IP67
Operating Temperature Trigger Event	60°C

Frequently asked questions

What is the factory default focus range for this camera?

The factory setting for the focal length is from 1.0m to infinity.

How should the camera be connected if using a PoE switch?

Connect the camera directly to the PoE switch using an Ethernet cable.
