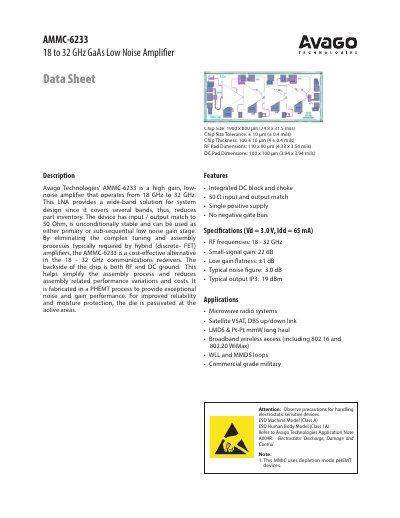

The AMMC-6233 is a high gain, low-noise amplifier that operates from 18 GHz to 32 GHz. This amplifier provides a wide-band solution for system design since it covers several bands, reducing part inventory. It has a 50 Ohm input/output match, is unconditionally stable, and can be used as either a primary or sub-sequential low noise gain stage. By eliminating the complex tuning and assembly processes typically required by hybrid (discrete-FET) amplifiers, the AMMC-6233 is a cost-effective alternative in 18-32 GHz communications receivers. The chip is both RF and DC ground on the backside, simplifying the assembly process and reducing assembly-related performance variations and costs. It is fabricated in a PHEMT process to provide exceptional noise and gain performance. The die is passivated at the active areas for improved reliability and moisture protection.
The AMMC-6233 is a high gain, low-noise amplifier (LNA) designed for wide-band system design, covering frequencies from 18 GHz to 32 GHz. It is fabricated in a PHEMT process to provide exceptional noise and gain performance and is unconditionally stable with input/output match to 50 Ohm. The device eliminates the complex tuning and assembly processes typically required by hybrid amplifiers, making it a cost-effective alternative for communications receivers.
| Operating Frequency Range | 18 - 32 GHz |
|---|---|
| Small-signal Gain | 22 dB |
| Typical Noise Figure | 3.0 dB |
| Typical Output IP3 | 19 dBm |
| Drain Supply Voltage | 3 V |
| Drain Current | 65 mA |
| Chip Size | 1900 x 800 µm |
| Chip Thickness | 100 ± 10 µm |
The typical noise figure is 3.0 dB.
It is used in microwave radio systems, satellite VSAT/DBS links, and broadband wireless access.
